Overview

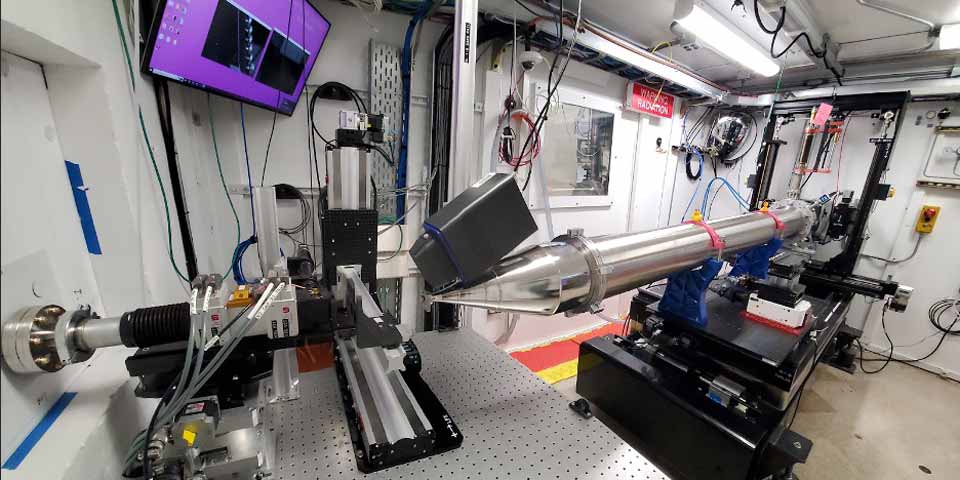

Beamline 1-5 is a materials science beamline that has been used for a host of science areas, for example polymer morphology during deconstruction, nanoparticle synthesis, catalyst support materials, and hydrated skin samples. Beamline 1-5 is a bend magnet end station focused on small-angle x-ray scattering (SAXS) measurements, but with the possibility of also doing wide-angle x-ray scattering (WAXS). It can also be configured for simultaneous SAXS/WAXS. BL1-5 is equipped with two area detectors: Dectris Pilatus 1M (SAXS) and Dectris Pilatus 100K (WAXS). The beamline is available in two standard configurations: 1- and 3-meter sample-to-SAXS detector distances. The WAXS detector is typically capable of reaching a minimum q value of 1.2 Å-1 for either of the configurations.
The beam line accommodates x-ray energies in the range of 8-17 keV. There are several sample environments available.
The current user base consists of both internal and external users and can be grouped into the following scientific research areas:
- Batteries
- Polymer upcycling
- Microelectronics/flexible electronics
- Separations
- Gas capture and storage
- Critical materials
Status —
Beamline Parameters —
| Configuration | Example energy | Typical q-range (Å-1Beam size @ sample (V x H)) | Beam size @ sample (V x H) | Flux |
|---|---|---|---|---|
| 1-m transmission | 15 keV | 0.15 – 0.8 | 110 μm x 180 μm | 3.5x109 – 1 x 1010 |
| 3-m transmission | 15 keV | SAXS: 0.007 – 0.25 WAXS: 1.5 – 4.7 | 500 μm x 500 μm | 3.5x109 – 1 x 1010 |
| 3-m grazing | 15 keV | 0.007 – 0.25 | 200 μm x 300 μm Projection at theta 0.12˚is ~48 mm | 3.5x109 – 1 x 1010 |
Optics —
| M0 Mirror | Monochromator |
|---|---|
| Toroidal mirror coated with Cr/Pt/Rh, layer thickness 10/60/6 nm respectively, with Rh as top layer | Double-crystal, non-fixed exit slit |
Source —
Instrumentation —
| Detectors | Dectris Pilatus 1M PAD, Dectris Pilatus 100K PAD |
|---|---|
| Computers | Operation PC, Analysis PC, Camera PC, Instrumentation PC, Beam Diagnostics PCol |
Sample Environment —
| Standard Transmission | Multi-sample capillary holder (variably capillary size, standard of 1.5 – 2.0mm diameter) Multi-sample washer holder (can accommodate films or sandwiched powders) |
|---|---|
| Standard Grazing | Grazing incidence thin film holder (no heating) |
| Sample Heating | Four-capillary heater (max temp of 200C) Washer heater (max temp of 200C) |
| Custom | Custom user setups can be accommodated (nitrogen/argon available) |
