Overview

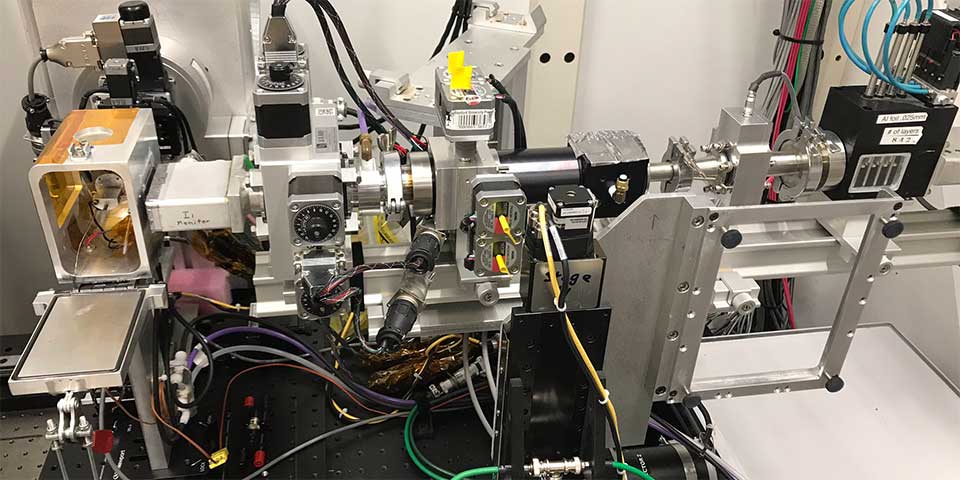

Beam line 11-3 is a fixed energy (E = 12.7 keV, λ = 0.9763 Å) wiggler side station dedicated to wide-angle X-ray scattering techniques (WAXS). The beam line specializes in grazing-incidence geometry measurements, but transmission geometry measurements are also available upon request. The high flux of the instrument paired with a Rayonix MX225 CCD area detector enables rapid data acquisition across variable q-ranges for in-situ/operando X-ray scattering measurements.
This instrument supports a broad array of topics in material science, chemistry, physics, and environmental science. Notable applications include structural characterization of:
- Photovoltaics/solar cells
- Batteries (pouch cells) and electrodes
- Polymers (membranes, thin films, upcycling, catalytic decomposition)
- Organic and inorganic semiconductors
- Microelectronics and quantum devices
- Sorbents for gas capture, storage, and separations
Many of these materials can be examined in-situ or operando with facility supported or user provided sample environments. Contact the beam line scientist or engineer to discuss the feasibility of user provided sample environments.
Source —
Source is 24-pole, 2.0 Tesla wiggler
Status —
Beamline Parameters —
| Energy Range | Resolution ΔE/E | Spot Size | Flux | |
|---|---|---|---|---|
| Focused | 12700 eV | ~5 x 10-4 | 3.0 x 0.15 mm | 2 x 1012 ph/sec |
Optics —
| M0 Mirror | Slits | Monochromator |
|---|---|---|
| Vertically focusing, flat, bent, 1 m, Si, Rh-coated | Adjustable slits for defining beam to sample. Adjustable slits for defining beam to sample. Typical beam sizes for geometries: - GIXRD (50 microns vertical x 150 microns horizontal) - Transmission (100 microns vertical x 100 microns horizontal) |
Bent flat, side-scattering Si(311) with offcut; fixed energy at 12700 eV. |
Instrumentation —
| Detectors | Rayonix MX225 with 73.242 µm × 73.242 µm pixel size, variable working distances Vortex®-EX silicon drift detector for XRF available for transmission geometries and GI without helium chamber |
|---|---|
| Other (available upon request) | CryoCon 24C temperature controller with Sorensen DLM 40-15 external power supply Keithley 2601B source meter BioLogic MPG200 potentiostat Oxford Cryojet |
Sample Environment —
| GIXRD Helium Chamber | 21.5 mm × 20.5 mm Al sample stage with vacuum port, heating up to 200 °C |
|---|---|
| Standard GIXRD | 21.5 mm × 20.5 mm Al sample stage with vacuum port |
| Transmission plates | Multiple sample plates available with varying array and aperture sizes |
| Transmission battery cycling | Electrochemical cycling with up to 2 pouch cells, contact staff for pouch cell specs |
| Capillary heating | heating powders up to 500 °C, compatible with capillaries with 0.5-1.25 mm o.d. |
Absorption —
| 508 μm Be, 2 mm C |
|---|
